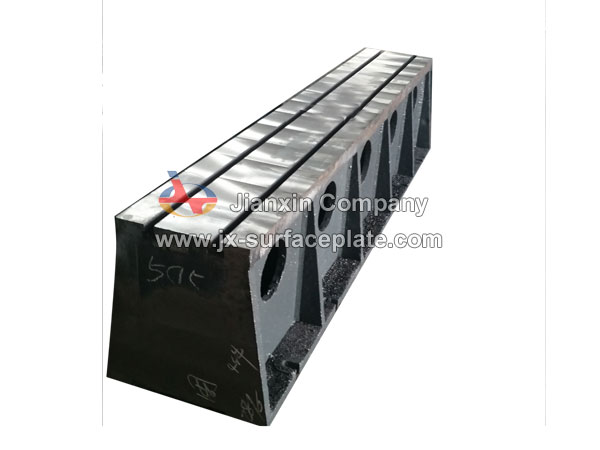

T-slot ground rails

T-slot ground rails

Usage: T-slot ground rails are evenly disposed according to the fixed point of large-scale equipments, and then join together as a whole ground rail platform. They are mainly used for the assembling, trial, welding and testing of large-scale equipments. They can replace large-scale cast iron surface plates, and save cost, space and cost-effective.

Details

T-slot ground rails

Usage: T-slot ground rails are evenly disposed according to the fixed point of large-scale equipments, and then join together as a whole ground rail platform. They are mainly used for the assembling, trial, welding and testing of large-scale equipments. They can replace large-scale Cast iron surface plates, and save cost, space and cost-effective.

Material: HT200-300
Specification: 1500-4000mm in length or customize
Surface: T-slots
Hardness of the working surface: HB160-240
Surface treatment: machine processing
Foundry process: sand casting or centrifugal castings
Molding type: resin sand molding
Painting: primer painting
Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint
Working temperature: (20±5)°C
Precision grade: 1-3
Packaging: wooden box
