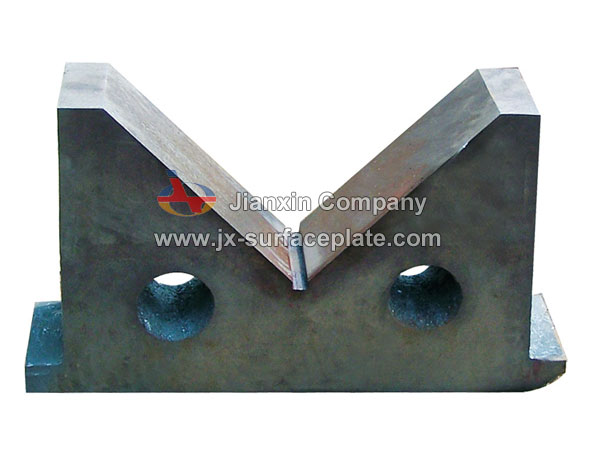

Single port cast iron V-blocks

Single port cast iron V-blocks

Usage: Single port cast iron V-blocks are used in supporting the cylinder components such as spiale, tube and sleeve-shape in order to keep the axial lead parallel to the platform working surface. They are wildly applied in the inspection, lineation, fixing position and clamping in the production processing of precision shaft-like parts. They are supply in pairs.

Material: HT200-300
Standard: JB/T8047-95
Specification: attached form or customize
Surface treatment: hand-scraped or ground finish
Foundry process: sand casting or centrifugal castings
Molding type: resin sand molding
Painting: primer painting
Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint
Working temperature: (20±5)°C
Precision grade: 1-3
Packaging: wooden box
