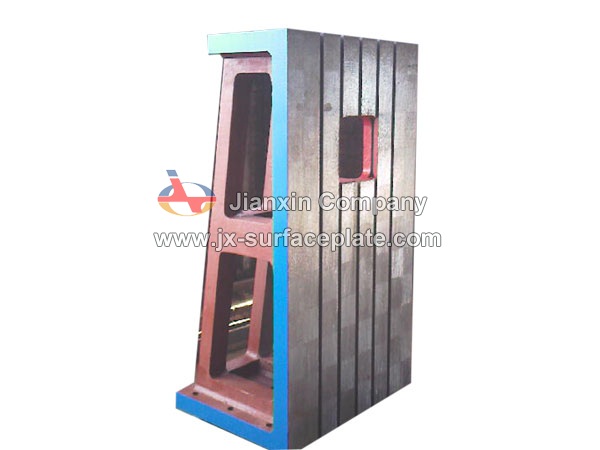

Vertical bending platform

Vertical bending platform


Usage: Vertical bending platform are used for inspection and marking of workpieces’ vertical direction, also used for up-right clamping during machine processing. It is ok for them to check the vertical surface of floor type boring and milling machines.

Material: HT200-300
Standard: GB6092 – 85
Specification: customize
Hardness of the working surface: HB160-240
Surface treatment: scraping and grinding or finish-milling
Foundry process: sand casting or centrifugal castings
Molding type: resin sand molding
Painting: primer and face painting
Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint
Working temperature: (20±5)°C
Precision grade: 1-3
Packaging: wooden box
