Granite parallel gauge
Granite parallel gauge
Granite parallel gauges sometimes substitute for the iron block and granite block which is with the same height; they are used for testing components' parallel and supplied in pairs.
- Tel: +86-317-8177617
- Fax: +86-317-8175009
- E-mail: info@jx-surfaceplate.com
Details

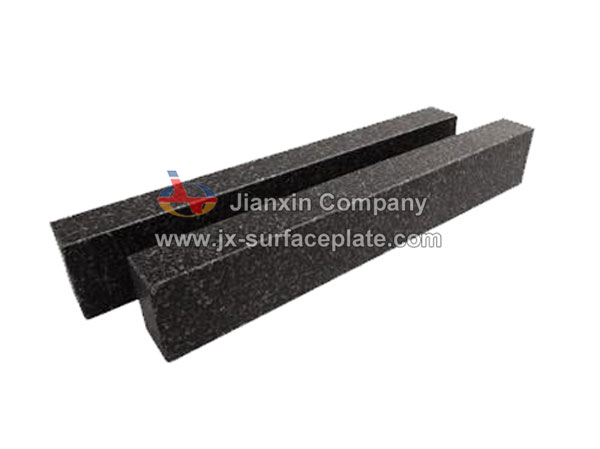

Granite parallel gauges
Granite parallel gauges sometimes substitute for the iron block and granite block which is with the same height; they are used for testing components' parallel and supplied in pairs.
Material: granite
Specification: 160x25x16-630x100x63mm or customize
Hardness of the working surface: HS70
Surface treatment: ground finish
Precision grade: 00-0
Packaging: wooden box
|
Specification |
Planeness, parallel of working surface |
Verticality between working surfaces |
Verticality between side and working surface |
|||
|
Precision grade (um) |
||||||
|
00 |
0 |
00 |
0 |
00 |
0 |
|
|
160×25×16 |
1.5 |
3 |
20 |
40 |
1.5 |
3 |
|
250×40×25 |
2 |
4 |
30 |
60 |
2 |
4 |
|
400×63×40 |
4 |
8 |
40 |
80 |
4 |
8 |
|
630×100×63 |
6 |
12 |
50 |
100 |
6 |
12 |
