Details

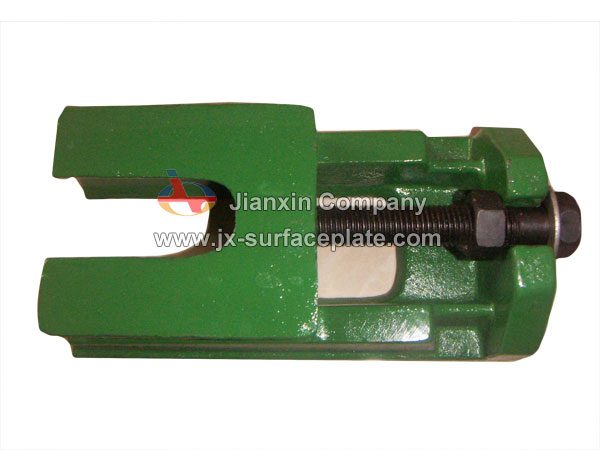

Surface plate adjust
Material: HT200-300
Standard: JB/T8775-98
Specification: see attached form or customize
Surface treatment: finish-milling or ground finish
Foundry process: sand casting or centrifugal castings
Molding type: resin sand molding
Painting: primer painting
Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint
Working temperature: (20±5)°C
Precision grade: 1-3
Packaging: wooden box
|
Specification |
Adjustable height |
Single bearing capacity |
|
160×80×50 |
5 |
1200 |
|
200×100×55 |
8 |
3000 |
|
220×110×60 |
8 |
3500 |
|
240×120×70 |
10 |
4000 |
|
260×130×70 |
10 |
4500 |
|
280×130×80 |
11 |
5000 |
|
300×150×100 |
14 |
5000 |
